Technical data sheet · FE-M · 144 SPM
FE-M-58C

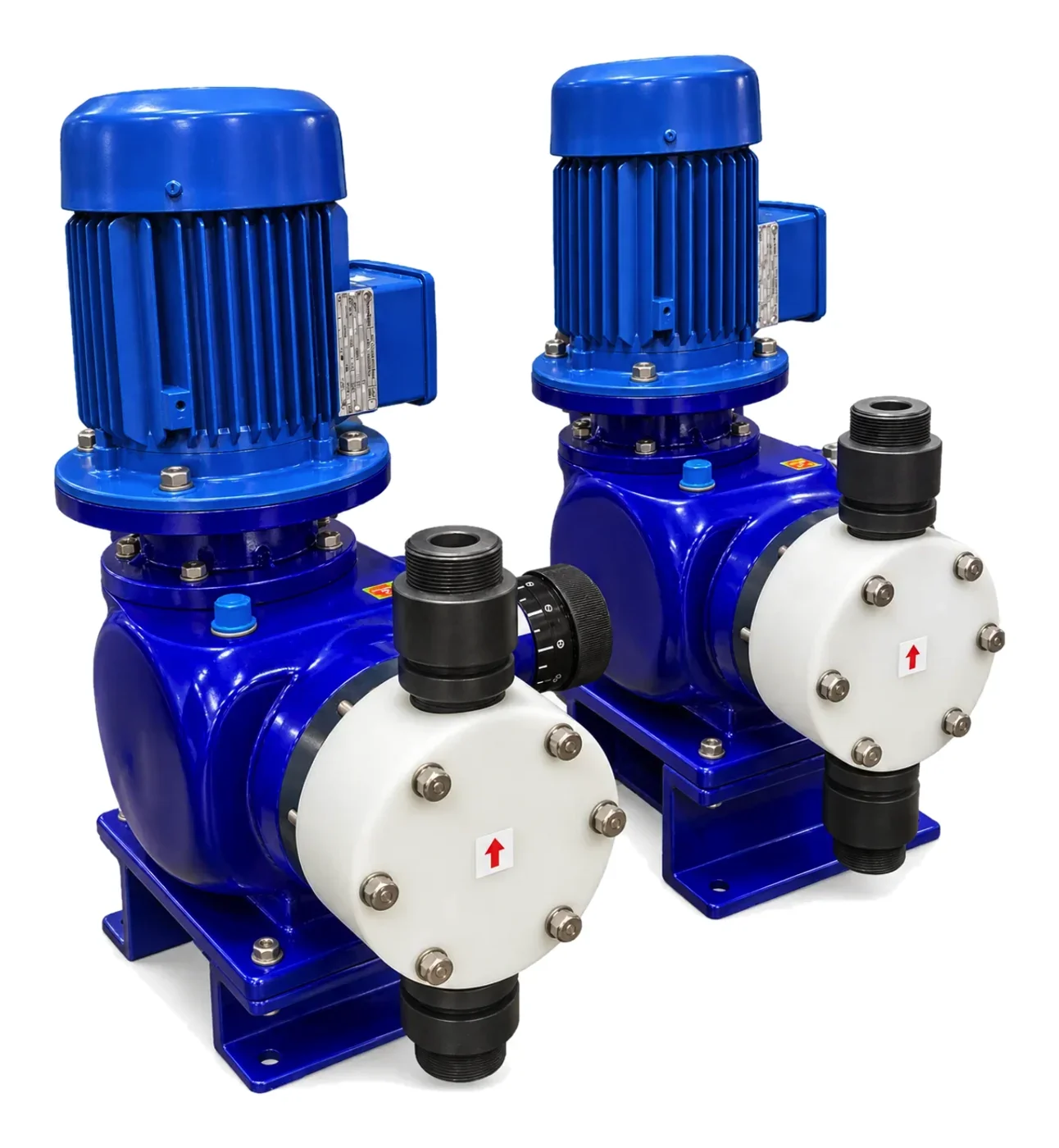

Motor-driven metering / dosing pump
500LPH max. flow
5.0kg/cm² max. pressure
144Strokes / min
01General specifications
FE-M-58C.
A mechanically actuated diaphragm pump for high-capacity dosing. A flange-mounted motor drives the diaphragm through a worm gear, and output is set by manual stroke length adjustment.
- Make
- Focus
- Model
- FE-M-58C
- Type
- Mechanically actuated diaphragm type, motor driven
- Drive
- Electric motor with worm shaft & worm gear
- Flow adjustment
- By manual stroke length adjustment
- Maximum flow
- 500.0 LPH
- Maximum pressure
- 5.0 kg/cm²
- Maximum strokes per minute
- 144 SPM
- Maximum stroke length
- 12 mm
- Turn-down ratio
- 10 : 1
- End connection size
- 1½″ BSP, male or female
02Materials of construction
Built to last.
| Component | Material |
|---|---|
| Housing | Aluminium casting |
| Mounting base | M.S. |
| Worm shaft | EN-8 |
| Worm gear | C.I. |
| Pump head | PP / SS / Teflon |
| Suction & delivery fittings | PVC / SS / Teflon |
| NRV ball | Teflon / SS |
| Y-strainer | PP |
| Anti-syphon (injection valve) | PVC / SS / Teflon |
03Motor specification
Three-phase drive.
Motor
Speed1440 RPM
Voltage415 V
Supply3 phase
MountingFlange mount B5

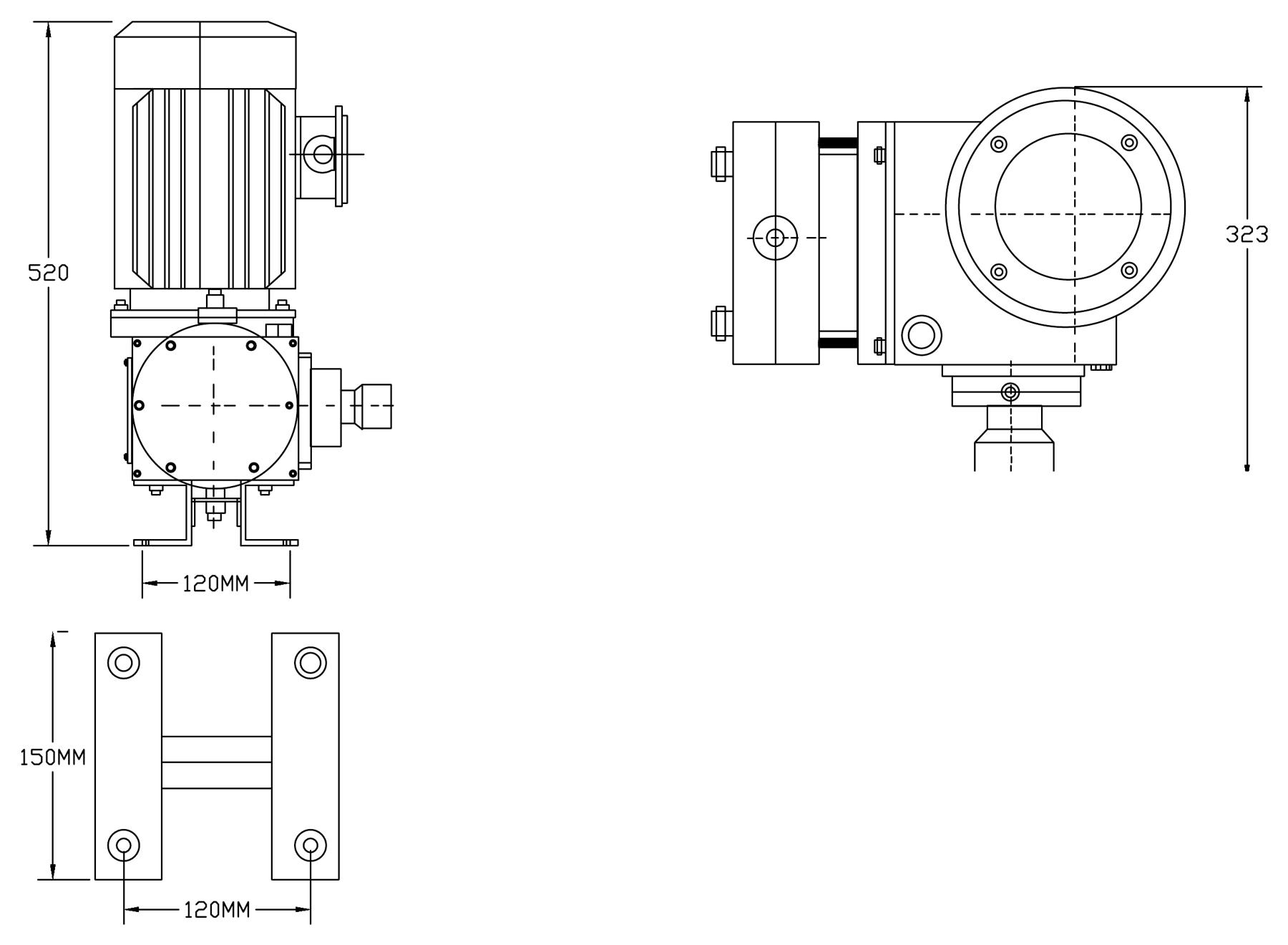

04Drawings
Dimensions.
Combined data sheet
FE-M-58C & FE-M-60C · combined · 3 pages
