FE-CD series · Compact design
Compact
dosing pumps.
Compact, electromagnetically driven diaphragm pumps for accurate low-flow chemical dosing, with adjustable stroke frequency and high-precision ceramic ball check valves.
10.0LPH max. flow
12.0kg/cm² max. pressure
3.2 kgWith packing
01
Compact design
02
Adjustable stroke frequency
03
NRV with high-precision ceramic balls and Viton seals
04
Optional low-level controller (dry-run protector)
05
PTFE with neoprene diaphragm
01Model ratings
Capacity against
pressure.
02Technical details
Common to all
FE-CD models.
- Type
- Electronically actuated diaphragm type
- Number of strokes
- 100 SPM
- Tubing size
- 6 mm × 4 mm
- Input power supply
- 220 V, single phase, 50 Hz, 40 W (approx.)
- Suction lift
- 1.0 m water column
- Standard accessories
- Foot valve, injection valve & 3 m LDPE tubing
- Optional accessories
- Low-level controller (dry-run protector)
- Weight (with packing)
- 3.2 kg
03Materials of construction
Built to resist
the chemical.
| Component | Material |
|---|---|
| Head | PP |
| Housing | GFPP |
| Diaphragm | PTFE with neoprene |
| Ball | Ceramic |
| Seal | Viton |
| Anti-siphon valve | PP / PVC |
| Foot valve | PP / PVC |
| Tubing | LDPE |

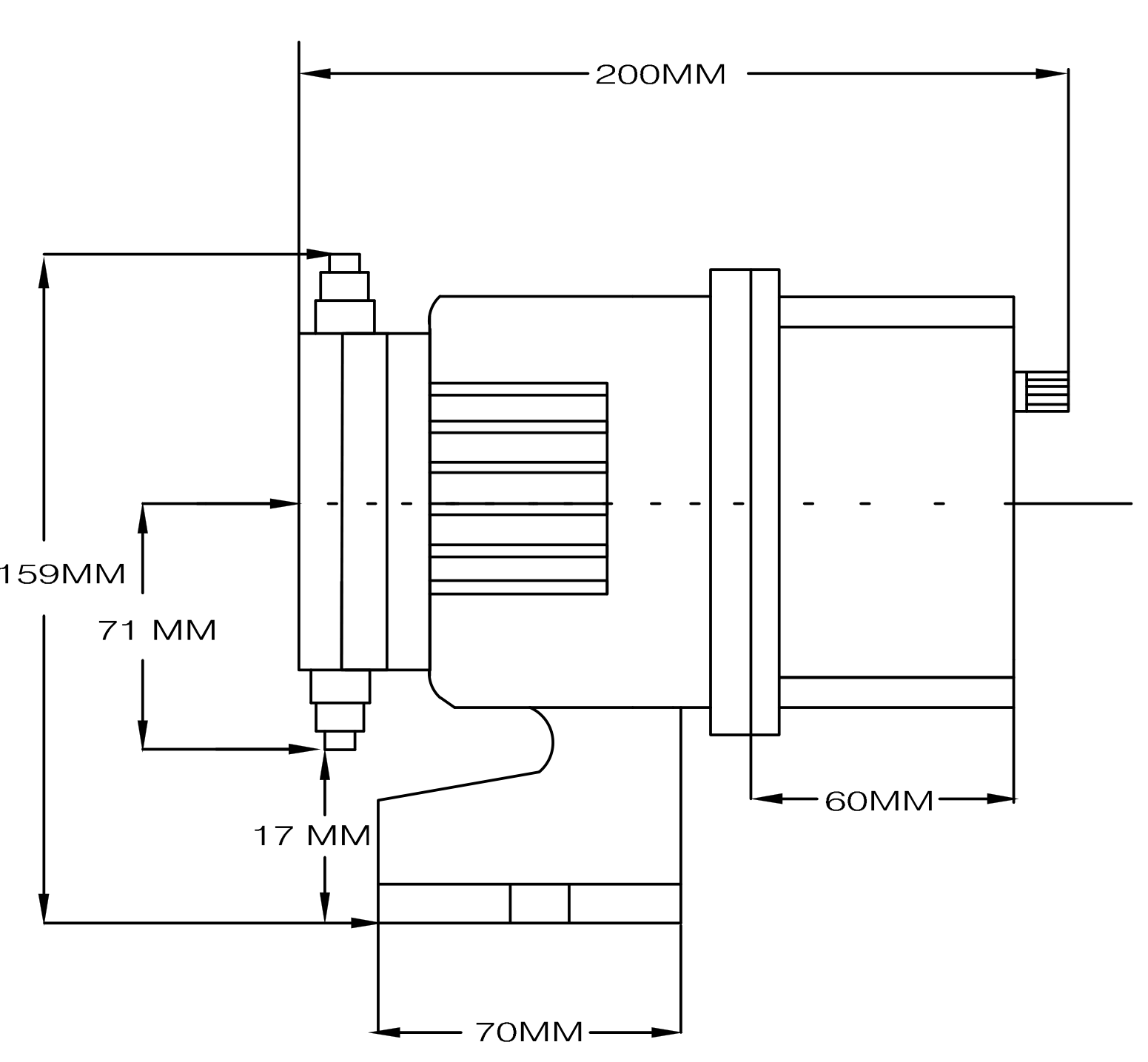

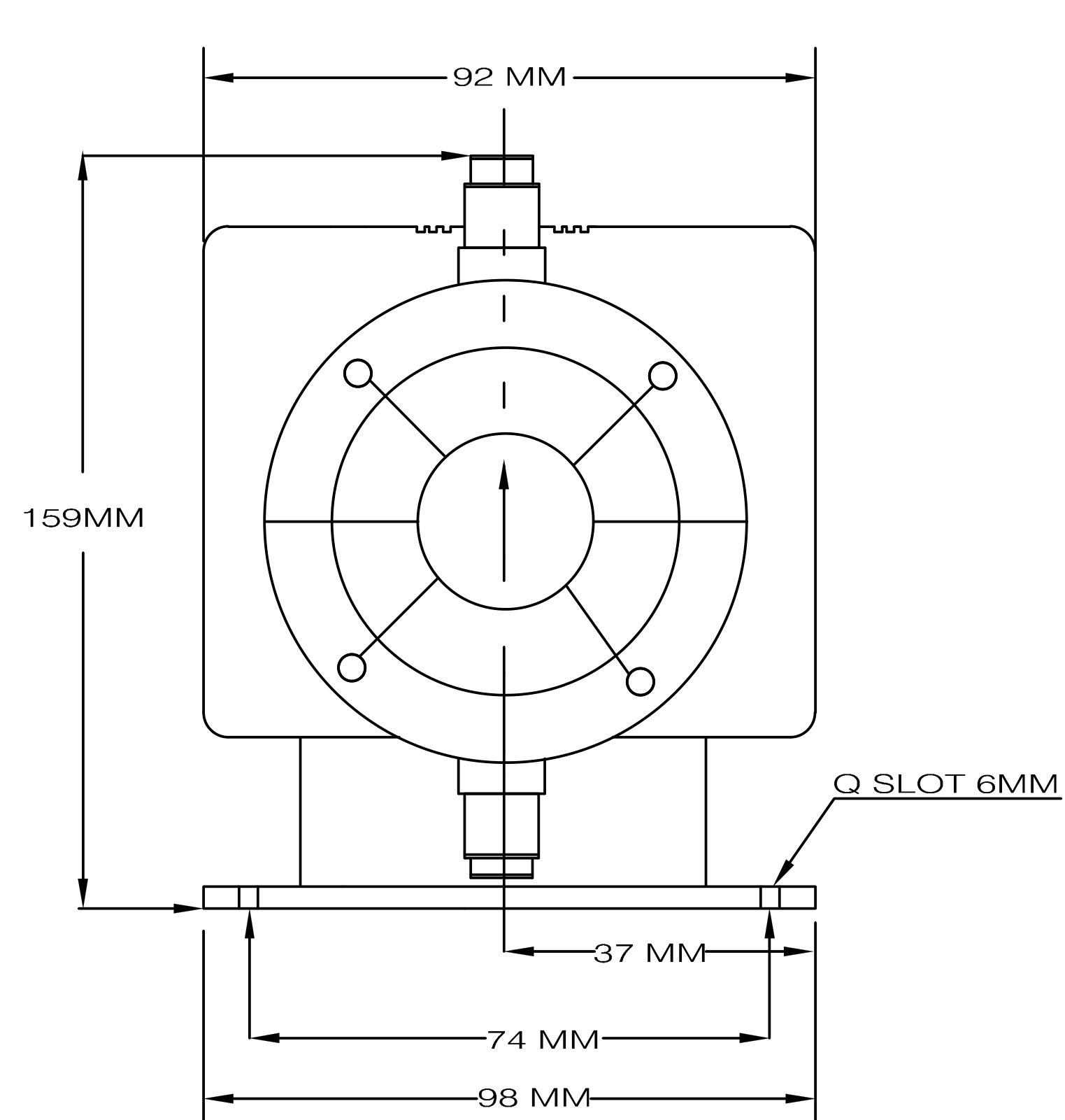

04Overall dimensions
Drawings.
All dimensions in millimetres.
05Data sheets
Download by model.
FE-CD · 100 SPMPDF
FE-CD-1
- Max. flow
- 10.0 LPH
- Max. pressure
- 5.0 kg/cm²
FE-CD · 100 SPMPDF
FE-CD-2
- Max. flow
- 6.0 LPH
- Max. pressure
- 7.0 kg/cm²
FE-CD · 100 SPMPDF
FE-CD-3
- Max. flow
- 3.2 LPH
- Max. pressure
- 12.0 kg/cm²
Complete series document
FE-CD series · all 3 models · 2 pages
Not sure which model fits?
